Import research data - user guide

This detailed guidance explains:

• the process for importing a research data set into the SDE
• how to prepare and upload a participant data (cohort) file
• how to prepare and upload a research data set file
• what happens to your data set when we receive it
• how to update a file

To import research data into the SDE, this must be agreed as part of your data sharing agreement (DSA). You must also submit a schema file as part of your Data Access Request Service (DARS) application.

This schema file describes the structure of the research data you plan to bring into the SDE.

Once your DSA is approved you will need to provide 2 files, which are linked using a common unique reference, following the steps below.

This file contains identifiers for the individuals in the study (for example, NHS number and date of birth). It is used to identify and trace participants to NHS records.

During the DARS application, you will be asked to confirm who will submit the file.

The submitter will receive an email with instructions on how to access the Secure Electronic File Transfer (SEFT) service to submit the files.

How to prepare your participant data (cohort file)

You must prepare the file using the guidance for submitting a cohort submission file. This guidance explains how to format the file so it can be uploaded successfully to the SEFT service.

Each row in the file must include a ‘UNIQUE_REFERENCE’ (also referred to as ‘Study ID’) for the individual.

How to submit your participant data (cohort file)

Upload the participant data (cohort file) using SEFT.

Once the file has uploaded successfully and passed validation, the person submitting the data will receive a confirmation email. They can then submit the research data set file.

This file contains record‑level data collected or generated about the same participants. It is validated against the schema file provided as part of the DSA process.

Currently we are limited to receiving one flat file per DSA and aim to allow multiple files from September 2026.

After the participant data (cohort) file has been successfully uploaded and validated, the data submitter uploads the research data set file using the SEFT guidance.

How to prepare your research data set file

You must name and format your research data set file correctly so it can be uploaded without delay.

File name

The file name must include:

• your full NIC number, as shown in your DARS application
• the text string sde_research_data
• underscores (_) to separate each part of the file name

For example: NIC_123456_ A1B2C_sde_research_data.csv.

Format

Your research data set file must:

• be a CSV file (.csv)
• use comma-separated values (not pipe- or tab‑separated)
• be no larger than 3MB

Header row

The data set headers (first row in the csv file) must contain the exact field names listed in the approved schema file.

One of the headers must be UNIQUE_REFERENCE. The values in this field must match those in the submitted participant data (cohort file).

Data rows

You must exclude any personal identifiable information (PII) (for example NHS number, name, or date of birth).

Ensure values entered match to the data type specified in the schema file for the field.

For any date (DateType) fields, ensure the date value is entered as one of the following formats:

• YYYYMMDD
• YYYY/MM/DD
• YYYY-MM-DD
• YYYY.MM.DD

For any datetime (Timestamptype) fields, ensure value is entered in the following format:

• DD-MM-YYYY HH:MM:SS

Integer types must be whole numbers.

Ensure values do not exceed the maximum field length specified in the schema file for the field.

Only fields marked as Nullable = TRUE are left blank.

How to submit your research data set file

Upload the research data set file using SEFT.

Follow the SEFT user's quick help guide for step by step instructions on logging in and uploading files.

Upload the file to the folder that matches the NIC number of the DSA.

After upload, the file is ingested and processed through the research data processing (RDP) pipeline.

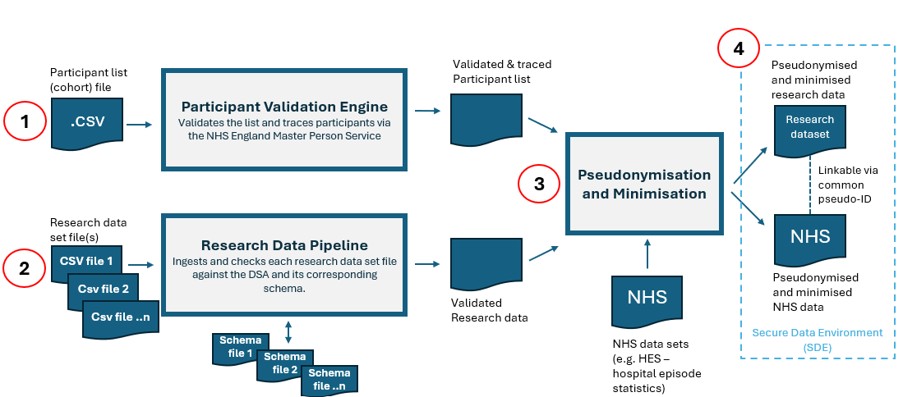

Once both files have been received and validated, we process the data in line with the DSA. We:

• pseudonymise the participant data by replacing the person identifier derived during the tracing process in step 1 with a pseudonymised person identifier
• minimise the research data in line with the participant data and any additional requirements set out in the DSA
• replace the unique reference in the research data set with the pseudonymised person identifier
• retrieve, minimise, and pseudonymise the relevant NHS data set(s) (as defined in the DSA) for the same participants

After processing is complete the NHS data set(s) and the approved research data set are then made available in the SDE, linked through a common pseudonymised ID.

Here are some quick reminders when preparing your research data set file:

Updating participant data (cohort file)

The data submitter is responsible for keeping the participant data file accurate and up to date.

To make changes, update the file in your own systems in line with the SEFT guidance on submitting your cohort. This may involve updating metadata for an existing participant, adding a new participant, or deleting an existing participant using the DELETE status.

You must not upload any new or updated research data files until you have received confirmation that the updated participant data file has been accepted.

Submitting new research data

If additional data is collected or generated during your study, you may need to submit a new research data set file.

For example, if your first submission included data from January–March and you later collect data from April–June, you must submit a new file containing all data from January–June.

Any new submission of research data will overwrite the existing research data set held for your DSA.

This means that every time you submit research data, the file must include all previously submitted research data and any new or updated records.

If you experience any issues uploading either the participant data (cohort file) or the research data set file, contact the National Service Desk by emailing [email protected] or by phone on 0300 303 5035.

When contacting the Service Desk, please quote:

• ‘PAVE cohort submission issue’ for participant data (cohort file) queries
• ‘SDE Research data issue’ for research data set file queries
