Register an iPad on your own profile

How to use Care Identity Management to register an iPad that you can then use to authenticate in place of a smartcard.

Before you can register your iPad

Before you begin, you must follow these steps:

  1. Install the NHS CIS2 app on the iPad. The app is available on the Apple Business store if your organisation has enabled it. If the app has not been enabled, the organisation's Registration Authority will need to complete this form

  1. Check that the iPad is not already registered. When you open the NHS CIS2 app:

  • if the first screen shows 'This device is not registered', you can begin the registration process

  • if the first screen shows 'This device is registered', you will need to request that the Registration Authority deregisters the iPad

  1. Check that only your fingerprints are included on the iPad’s Touch ID.

  1. On the device you are registering, in the NHS CIS2 app, prepare for registration by selecting ‘Register’.


Register your iPad

Go to the Care Identity Management start page and log in with your existing authenticator.

When you've logged in to Care Identity Management without a Registration Authority role, select the option to 'Add other authenticators'.

CIM 5.70 add other authenticators highlighted



Alternatively you can use the home page panel to 'View your profile', then in the 'Authenticators' tab select 'Add authenticators'.

CIM 5.70 view profile add authenticators highlighted



From the list of authenticators, select 'iPad'.

CIM 5.70 select authenticator 4 types



You'll now see a screen with instructions on how to register the iPad. Read these instructions.

Care Identity Management self register iPad instructions



When you are ready, select the box to confirm and then select the button to ‘Generate QR code’. The QR code will now be shown.

CIM iPad QR code shown



You now have 5 minutes to scan this code using the NHS CIS2 app. You will then need to follow the instructions you see on the iPad.

CIM iPad app journey

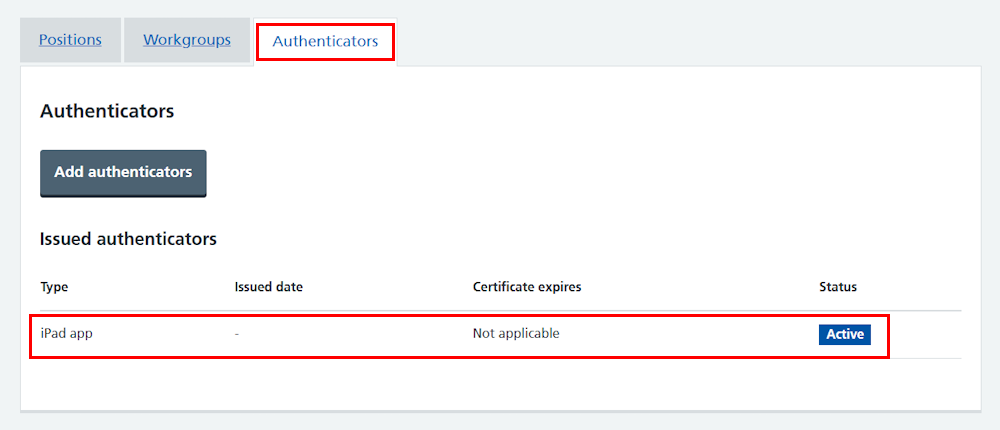

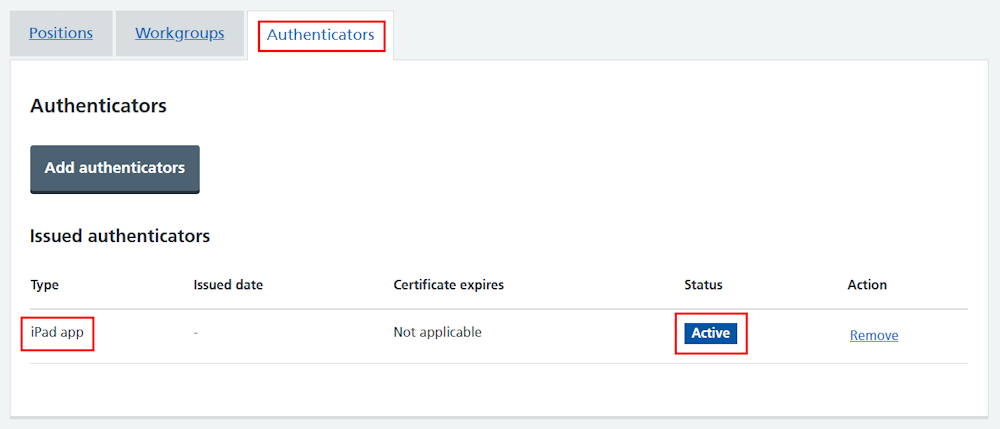

When you have successfully completed the process, the device will be shown as registered in the NHS CIS2 app and you’ll be able to use the iPad app to authenticate. It will also display as registered in Care Identity Management, though it may take a few minutes to appear.


Transfer registration

This process allows a CIS2 Authentication iPad user to transfer their registration from one iPad to another.

Before you begin, you must have the device you’ve registered with NHS CIS2 Authentication and the newer device that you would like to register. Both devices must have the NHS CIS2 app installed.

On your new device, confirm that only your fingerprints are stored. Open the NHS CIS2 app on your new device and select ‘Register’.

On your registered device, open Care Identity Management and authenticate. Select the option to 'Add other authenticators'.

CIM 5.70 add other authenticators highlighted



Alternatively you can use the home page panel to 'View your profile', then in the 'Authenticators' tab select 'Add authenticators'.

CIM 5.70 view profile add authenticators highlighted



From the list of authenticators, select 'iPad'.

CIM 5.70 select authenticator 4 types



You'll now see a screen with instructions on how to register the iPad. Read these instructions.

Care Identity Management self register iPad instructions



When you are ready, select the box to confirm and then select the button to ‘Generate QR code’. The QR code will now be shown.

Note: registering the new device will remove the registration on your current device. Only proceed to the next steps when you are certain this is what you want to do.

CIM iPad QR code shown



Use your new device to scan the QR code displayed on the current. The QR code will expire after 5 minutes and can only be used once.

CIM iPad app journey



The new device should now appear as registered in the NHS CIS2 app. It will also display as registered in Care Identity Management, though it may take a few minutes to appear.
